Inoculation methods and resin yield optimization

1. UNDERSTANDING RESIN FORMATION

• Agarwood resin (oleoresin/“oud”) forms as a defense response to wounding, fungal infection, or chemical stress.
• Key factors affecting resin yield:
  1. Tree species & age
  2. Type of inoculation (biological or chemical)
  3. Site conditions (soil, humidity, temperature)
  4. Tree health and vigor
  5. Harvest timing & post-inoculation period
• Target tree age for inoculation: 3–5 years old for faster resin formation; younger trees can be inoculated but may produce lower grades.

2. INOCULATION METHODS

A. Biological Methods (Fungal Inoculation)

• Most common and effective method for high-quality resin.
• Mechanism: Fungi infect xylem → trigger defense response → resin deposition around infected site.

1. Fusarium oxysporum-based inoculation

• Fusarium strains are widely used in Southeast Asia.
• Forms:
  • Spore suspension (10⁶–10⁷ spores/mL)
  • Paste or gel for direct application
• Advantages:
  • Induces high resin content
  • Compatible with plantation settings
  • Can be combined with chemical triggers
• Example: BarIno FusaTrinity™ (MnO₂ + Fusarium blend)

2. Other Fungal Strains

• Aspergillus spp., Penicillium spp., and Trichoderma spp.
• Usually used in experimental or high-grade applications
• May influence resin aroma profile differently

Protocol (Fusarium Example):

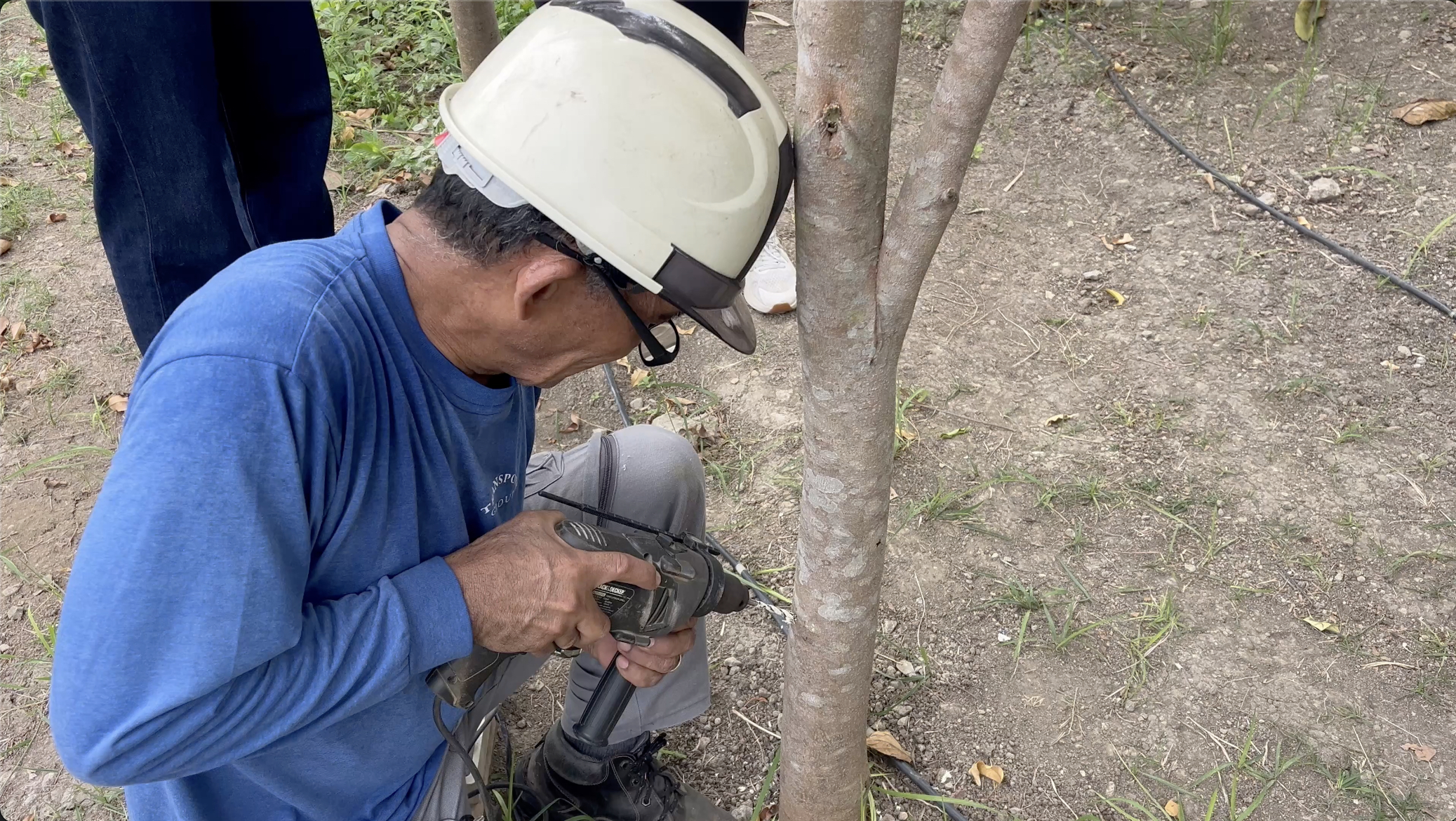

1. Drill holes (1–2 cm diameter) 15–20 cm deep
2. Inject fungal suspension or paste
3. Seal with wax or biodegradable plug
4. Monitor for resin formation after 6–12 months

B. Mechanical Methods

• Wounding / Drilling / Nail Method
  • Drill holes or make cuts in heartwood
  • Triggers resin accumulation around wound
• Advantages: Simple, low cost
• Disadvantages: Slower resin production; lower-grade resin if not combined with fungi

C. Chemical Induction

• Chemical inducers include:
  • Hydrogen peroxide (H₂O₂)
  • Manganese dioxide (MnO₂)
  • Salicylic acid
  • Ethanol/plant hormones
• Mechanism: Mimics stress response → triggers resin deposition
• Use: Often combined with fungal inoculation to accelerate resin formation

D. Combined Methods

• Fungal + Mechanical → higher yield, better resin distribution
• Fungal + Chemical → faster resin formation, can influence fragrance
• Mechanical + Chemical → low-cost approach, suitable for mid-grade resin

3. RESIN YIELD OPTIMIZATION STRATEGIES

A. Site & Tree Management

• Ensure healthy, well-fertilized trees (COFI organic fertilizers + compost)
• Avoid water stress during post-inoculation period
• Apply shade or wind protection for young trees

B. Optimal Drill Design

• Hole diameter: 1–2 cm
• Depth: 10–20 cm (into xylem)
• Spacing: 15–25 cm apart, depending on tree size
• Number of holes: 10–30 per tree (adjust based on tree age & size)

C. Inoculum Quality

• Use high-viability fungal spores (>10⁶ CFU/mL)
• Maintain sterile handling to avoid contamination
• For chemical inducers, ensure concentration and formulation are optimized

D. Post-Inoculation Care

• Seal holes to prevent contamination
• Regular monitoring of resin formation (color, viscosity)
• Mulch around the base to maintain soil moisture and temperature
• Avoid pruning or excessive mechanical stress during resin development

E. Timing & Harvest

• Resin usually forms 6–18 months after inoculation
• Check resin content using non-destructive methods (resin scraping or small core sample)
• Harvest high-grade resin selectively; low-grade wood can be used for chips or oil extraction

4. ADVANCED OPTIMIZATION APPROACHES

1. Multiple inoculation cycles: Inducing resin in waves to maximize tree output
2. Mixed-strain inoculation: Combining different Fusarium strains for diverse aroma profiles
3. Use of growth regulators: Salicylic acid, methyl jasmonate to enhance defense response
4. Controlled environment: For nursery or early-age trees, using shading, irrigation, and humidity control
5. Data tracking: Monitor yield by tree, site, inoculation method → feed into SOP for continuous improvement

5. EXPECTED Resin Yields (Plantation-based)

Tree Age	Method	Resin Yield (kg/tree)	Resin Grade
3–5 years	Mechanical	0.2–0.5	Low-mid
4–7 years	Fungal	0.5–2.0	Mid-high
5–10 years	Fungal + Chemical	2–5+	High-premium
7–15 years	Optimized multi-inoculation	5–8+	Kyara-grade / top oil

Note: Yields vary by species, site, inoculum quality, and management practices.

Key Takeaways

1. Early-stage planning: Match inoculation method to species and market target (chips vs oil vs perfumery).
2. High-grade production: Use fungal + chemical inoculation on mature, healthy trees.
3. Cost-efficiency: Mechanical + chemical methods are lower-cost alternatives for mid-grade resin.
4. Yield maximization: Optimize hole design, inoculum quality, tree nutrition, and post-inoculation care.
5. Data-driven operations: Record inoculation date, method, site, tree age, resin quality → essential for scaling and investor reporting.

---
